waveshare ESP32-S3 1.69inch LCD Display Development Board,240×280 Pixels 262K Color Micro LCD Display with ESP32-S3,Accelerometer and Gyroscope Sensor

Features ESP32-S3-LCD-1.69 is a low-cost, high-performance MCU board designed by Waveshare, embedded with 240MHz dual-core processor, tiny size, with onboard 1.69inch 262K LCD display, Lithium battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), WiFi/Bluetooth antenna, RTC, and so on, which makes it easy for you to develop and integrate it into products quickly. Key features include: Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory Type-C connector, keeps it up to date, easier to use Onboard 1.69inch 240×280 pixels 262K display for clear color pictures Built-in ST7789V2 display driver chip, using SPI communication, effectively saving the IO resources Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc. Onboard PCF85063 RTC chip with reserved SH1.0 RTC battery header (supports charging) for RTC function requirement Onboard RST, BOOT and a programmable PWM button for easy custom function development Onboard 3.7V MX1.25 lithium battery recharge/discharge header Reserved 12PIN header of 5 × GPIO, I2C, and UART interfaces, for connecting peripherals and debugging Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios Package Content ESP32-S3-LCD-1.69 x1 SH1.0 12PIN cable x1

• ESP32-S3 Development Board with 1.69inch Display,Micro LCD Display With ESP32-S3
• ESP32-S3-LCD-1.69,Embedded with ST7789V2 Display Driver Chip, SPI Communication
• Onboard 1.69inch LCD Screen,IPS Panel, 240×280 Resolution, 65K Color, Suitable For Various Application Scenarios

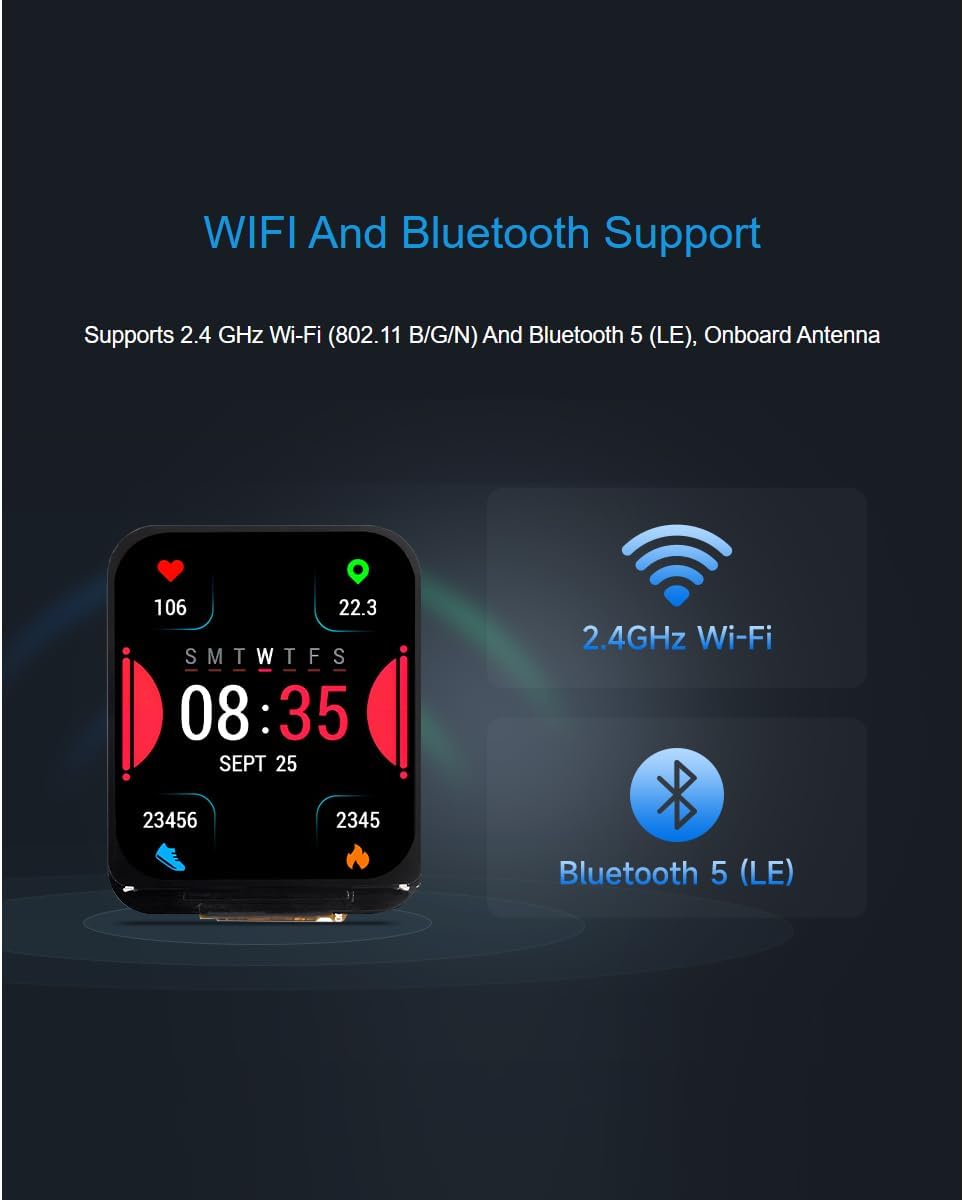

• WIFI And Bluetooth Support,Supports 2.4 GHz Wi-Fi (802.11 B/G/N) And Bluetooth 5 (LE), Onboard Antenna
• Compact Size, Accelerometer And Gyroscope Sensor
